NaviTech Engineers' robust manufacturing capacity ensures we meet diverse customer needs with high-volume production, precision, and flexibility across forging, casting, machining, and more.
Forging Capacity
Forging is a core manufacturing capability at Navitech Engineers, enabling the production of high-strength and fatigue-resistant components for demanding applications. The process is supported by mechanical and hydraulic forging presses, precision dies, and controlled heating systems. Optimized grain flow enhances mechanical properties and service life of components. Forged parts are produced to meet strict dimensional and metallurgical requirements. Applications include Automotive, Oil Field, Defence, Mining, and Industrial machinery. Each forging is supported by heat treatment and inspection to ensure consistent quality and performance.
Open Die
- Material Grades: Carbon Steel / Alloy Steel
- Component Weight Range: Up to 15 Ton
- Maximum Shaft Diameter: 450 mm
- Maximum Blank Diameter: 450 mm
Closed Die
- Material Grades: Carbon Steel / Alloy Steel
- Component Weight Range: Up to 1.5 ton
- Maximum Part Diameter: As per profile

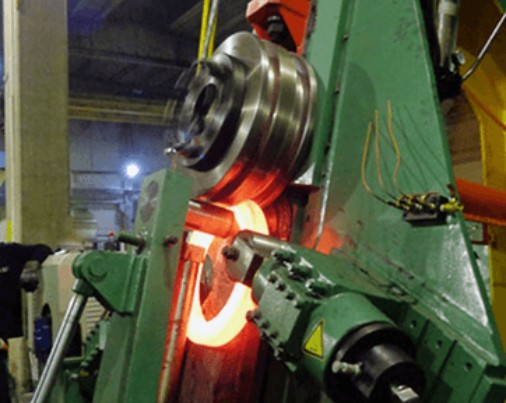

Ring Rolling Capacity
Ring rolling is a specialized capability used to manufacture seamless rings with superior structural integrity and uniform grain flow. The process enables material efficiency, reduced machining loss, and excellent dimensional accuracy. Ring-rolled components offer high load-bearing capacity and fatigue resistance, making them suitable for critical applications. Production is supported by controlled forming parameters and precision tooling. Components are further processed through heat treatment and machining as required. Supplies are made to Automotive, Oil & Gas, Defence, Mining, and Heavy Engineering sectors
- Material Grades: Carbon Steel / Alloy Steel / Stainless Steel
- Ring Outside Diameter (OD): Up to 4.5 mtr
- Material Grades: Carbon Steel / Alloy Steel / Aluminum
Casting Capacity
Navitech Engineers provides end-to-end casting solutions for complex and high-precision components. Multiple casting processes ensure flexibility in design, material selection, and production volumes. Controlled melting, moulding, and fettling operations deliver consistent dimensional accuracy and surface finish. Cast components are supported by heat treatment and machining for ready-to-fit applications. Materials include SG Iron, Grey Iron, and Aluminum alloys. Castings are supplied to Automotive, Agricultural, Energy, and Heavy Equipment industries.
- Casting Processes: Green Sand / No-Bake / Investment
- Casting Weight Range: up to 150 Kg
- Materials: SG Iron / Grey Iron / Aluminum / High Magnis Steel
Machining Capacity
Machining capabilities at Navitech Engineers enable the manufacture of close-tolerance and performance-critical components. Advanced CNC turning, milling, VMC, and HMC machines ensure high precision, repeatability, and surface quality. Operations include boring, drilling, tapping, grinding, and honing. Machined components are produced for safety-sensitive and functional applications. Sub-assemblies and kitted parts are supported for customer convenience. Inspection systems ensure compliance with international quality standards.
- CNC Turning Diameter: Up to 350
- CNC Turning Length: 1000 mm
- VMC Working Envelope (X × Y × Z): 1500 x 1000 x 500 mm
- HMC Pallet Size: 1000 x 700
- Tolerance Capability: Up to ± 0.005 mm
Sheet Metal Capacity
Navitech Engineers offers precision sheet metal manufacturing for structural and functional components. CNC laser cutting, punching, and bending operations ensure accurate profiles and consistent dimensions. Welding processes including MIG, TIG, and spot welding deliver strong and reliable joints. Components are further enhanced through powder coating, painting, and galvanizing. Sheet metal products are designed for durability and corrosion resistance. Applications include Industrial equipment, Automotive, Agricultural, and Heavy machinery sectors.
- Material Thickness: up to 7 mm
- Welding Processes: MIG / TIG / Spot
- Surface Finishing: Powder Coating / Painting / Galvanizing
- Monthly Output Capacity
Heat Treatment Capability
Heat treatment capabilities enhance the mechanical properties and service life of forged, cast, and machined components. Processes include Hardening, Tempering, Nitriding, and Blackening, carried out through qualified facilities. Controlled cycles ensure uniform hardness, strength, and wear resistance. Heat-treated components meet material and performance specifications. Hardness testing and inspection records ensure traceability. These processes support Automotive, Defence, Oil & Gas, and Industrial applications.
Suitable for Precision parts
- Hardening
- Tempering
- Nitriding
- Blackening
- Salt Bath Furnace with Controlled Atmosphere
- Certification & Records: MTC / Hardness / HT Charts
